Estun ER35B-1810-CE
High-Payload 6-Axis Robot for Industrial Automation
- Payload: 35 kg
- Reach: 1813mm
- Repeatability: ±0.03 mm
- Axes: 6
Key Features
- Payload Capacity 35kg
- Reach 1813mm
- Repeatability ±0.04mm
- Protection Rating Wrist IP65, Body IP54
- Robot Weight 277kg
- Mounting Options Floor / Table / Inverted
Flexible Automation Performance

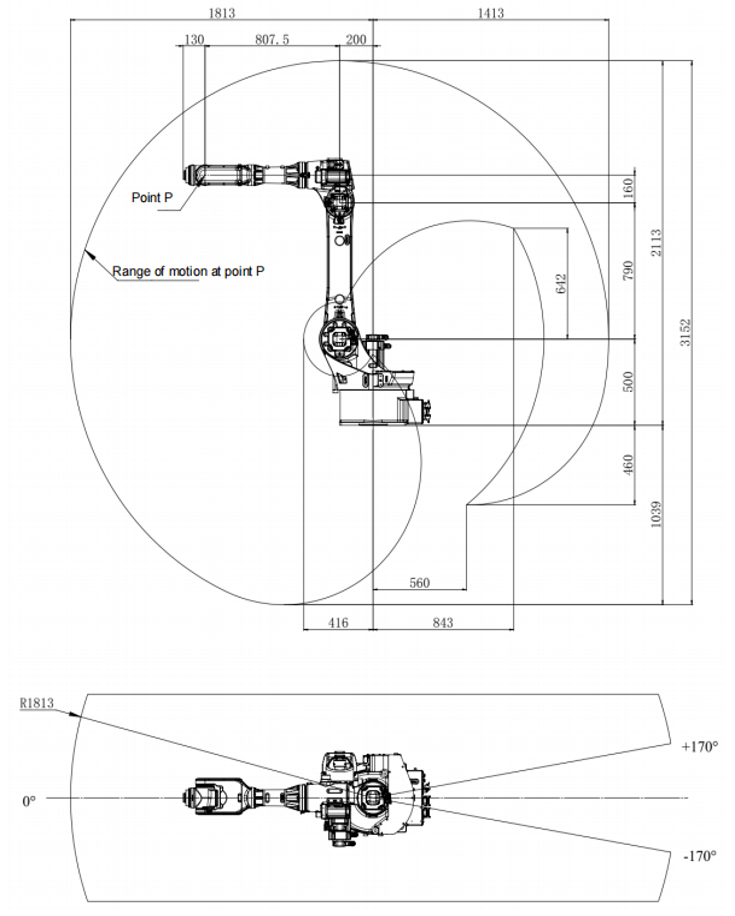

| Working Range | Max Axis Speed |
|---|---|
| 1. ±170° | 1. 206°/s |
| 2. -100°~+155 | 2. 206°/s |
| 3. -160° ~ +86° | 3. 238°/s |
| 4. ±200° | 4. 480°/s |
| 5. ±130° | 5. 330°/s |
| 6. ±360° | 6. 407°/s |
Key Advantages
High positioning accuracy and repeatability for precision industrial applications Smooth multi-axis motion control with advanced trajectory planning Robust, industrial-grade design for demanding automation environments Scalable architecture supporting complex, high-payload applications Suitable for a wide range of automation processes including heavy handling, palletising, and machining support Control cabinet model: ERS
Safety certification: EN ISO 13849-1 PLd Cat.3 & EN 954-1:1996 Control system: ESTUN Advanced Industrial Controller (ERS Platform) Teaching pendant: ERT76A1 (OPTIONAL on SCARA Robots) Rated power: 5 Kw- Electric cabinet size (W×D×H): 620mm×550mm×750mm Power input: 3-phase AC 380V-400 50/60Hz
✔ Available length cable to robot: 3m, 8m, 10m, 15m, 20m
✔ Safety IO: Passive contact, 5 inputs, 2 outputs
✔ Standard IO: System: 12+9 I/O. General: 20+23 I/O
✔ IP grade: IP54
✔ Weight: 130kg
✔ Bus communication: Integrated: EtherCat, EtherNet IP, Modbus TCP, TCP/IP.
ERT76 Teach Pendant
The ERT76 Teach Pendant provides intuitive and reliable control for Estun robotic systems, allowing operators to configure, program, and monitor robot operations with ease. Designed for industrial environments, it combines robust safety features with responsive hardware to support efficient robot setup and operation.
The pendant features a 7-inch TFT display with clear visual feedback and a responsive interface, ensuring operators can quickly navigate robot functions and programming tasks. Its ergonomic design and integrated safety controls provide secure manual operation during teaching and maintenance procedures.
Key Specifications
Model: ERT76 Processor: A40i Quad-Core 1.2 GHz Memory: DDRIII 512 MB Display: 7″ TFT Industrial Screen Resolution: 800 × 480 Safety Controls:
– Emergency Stop Button
– 2-Position Key Switch
– 3-Position Enable Switch
Cable Length: 8 m
Precision Motion Control
Advanced servo technology and multi-axis coordination ensure smooth and accurate movement for complex automation tasks.
Efficient System Integration
Designed for seamless integration with industrial control systems, vision systems, conveyors, and auxiliary automation equipment.
Reliable Industrial Operation
Robust mechanical design and proven control architecture deliver long-term reliability in demanding production environments.
